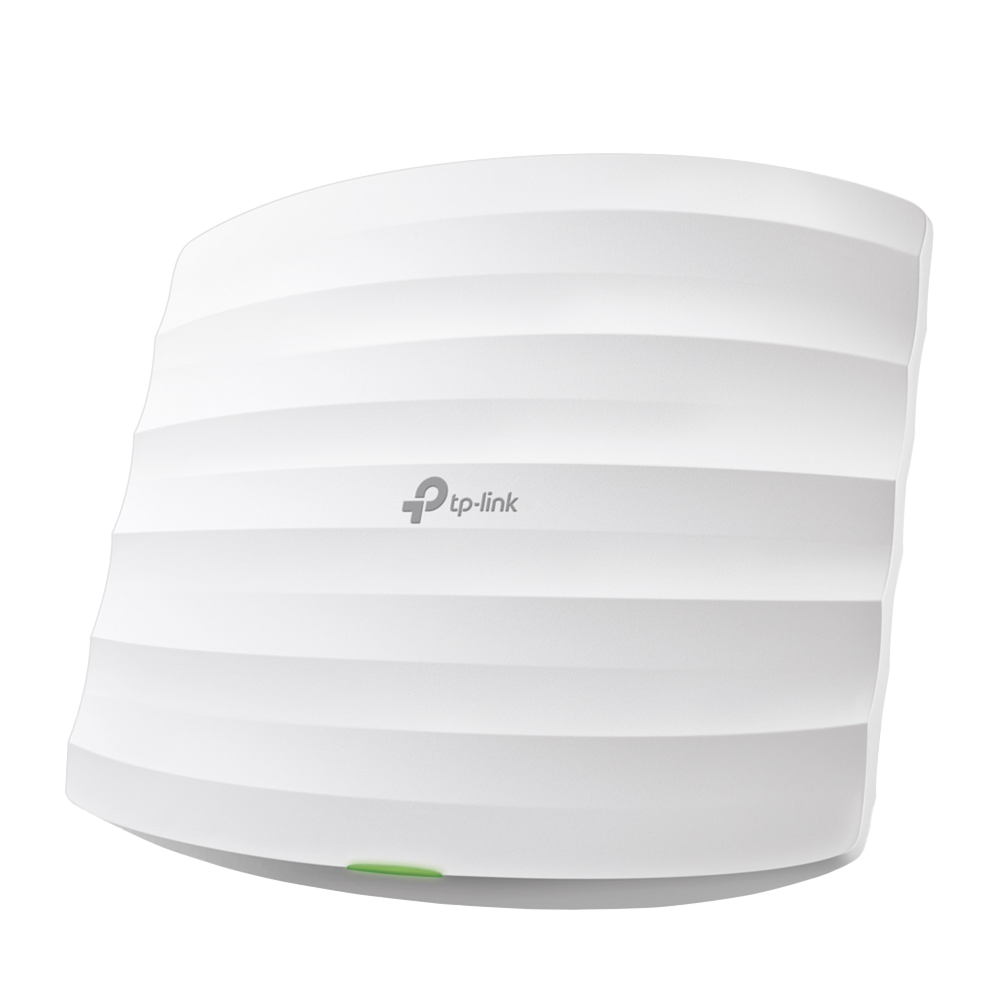

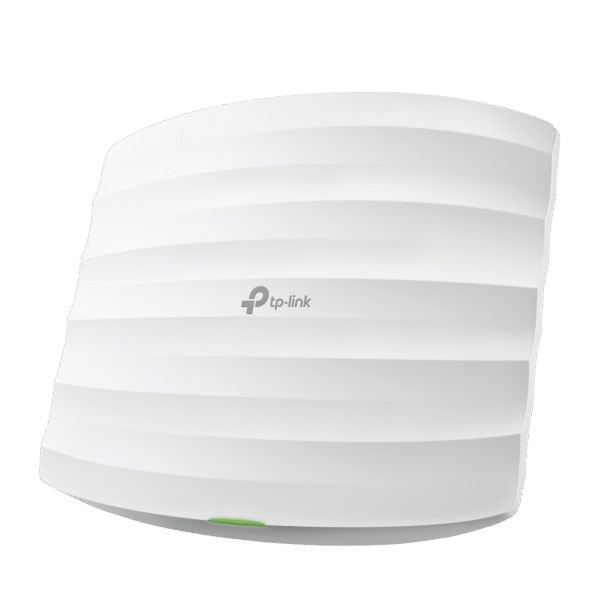

TP-LINK AC1750 Wireless Dual Band Gigabit Access Point

Highlights:

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• Free cloud centralized management and Omada app for ultra convenience and easy management
• Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
• Supports management VLAN for an enhanced network management

Specifications:

HARDWARE FEATURES

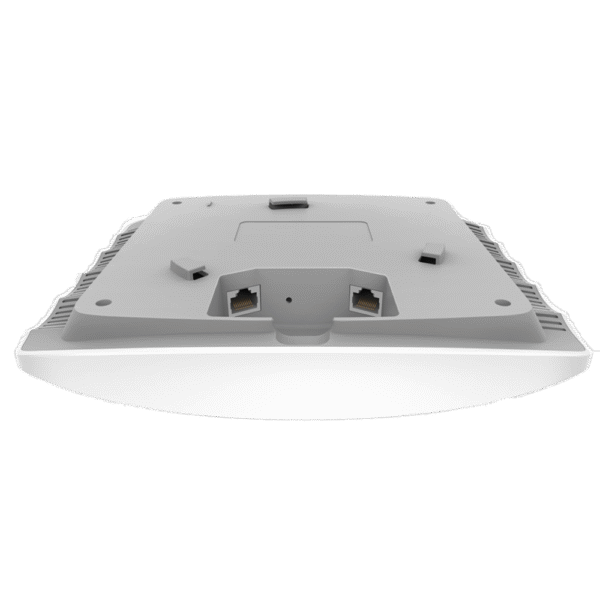

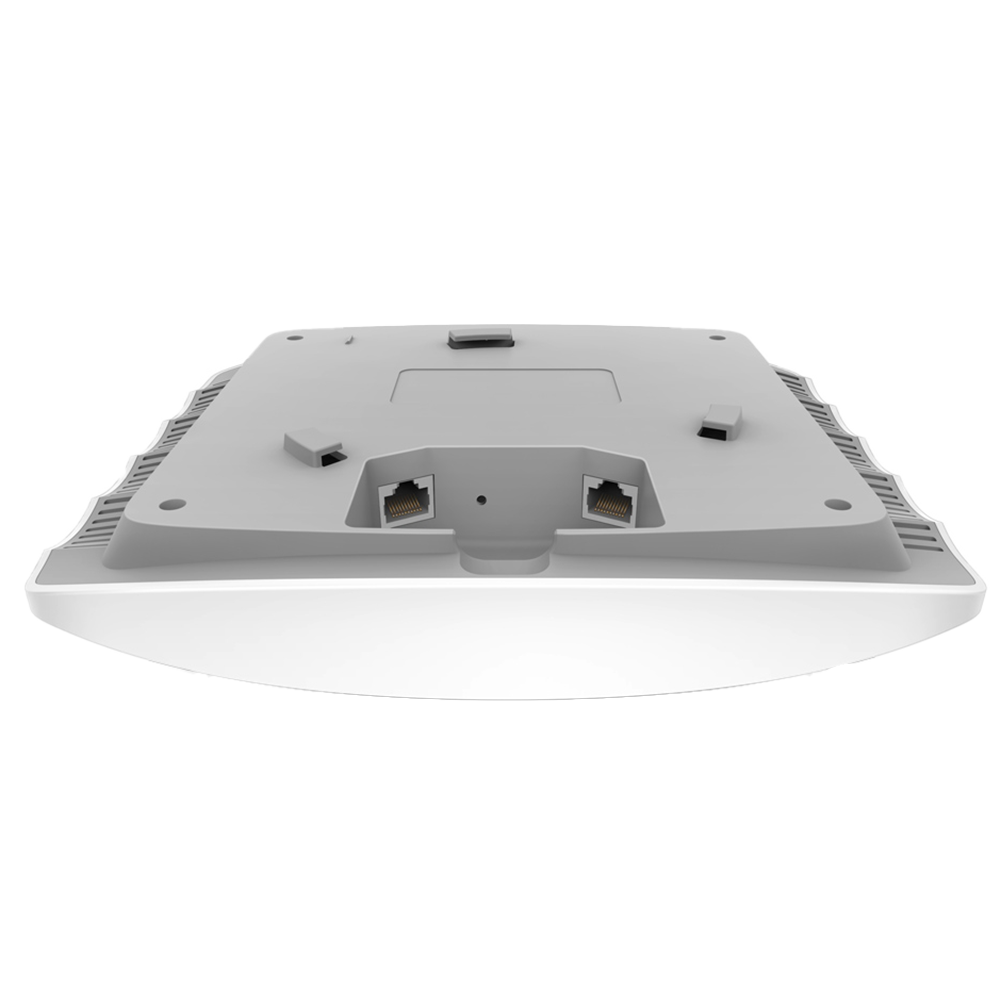

Interface: Gigabit Ethernet (RJ-45) Port x 2 (Support IEEE802.3af PoE and Passive PoE )
Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3af/A PoE, 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: 12.3 W
Dimensions ( W x D x H ):  8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type: Internal Omni, 2.4GHz: 3* 3.5dBi, 5GHz: 3*4dBi
Mounting:  Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog: Yes

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency; 2.4GHz and 5GHz
Signal Rate: 5GHz: Up to 1300Mbps / 2.4GHz: Up to 450Mbps
Wireless Functions:

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
•  Enable/Disable Wireless Radio
•  Automatic Channel Assignment
•  Transmit Power Control (Adjust Transmit Power on dBm)
•  QoS(WMM)
•  MU-MIMO
•  Seamless Roaming
•  Omada Mesh
• Band Steering
•  Load Balance
•  Airtime Fairness
•  Beamforming
•  Rate Limit
•  Reboot Schedule
•  Wireless Schedule
•  Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Software Controller OC200
APP support: Yes
Cloud Access: Yes (Through Omada Software Controller or OC200)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: Yes
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Package Contents:

– AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
– Gigabit Passive PoE Adapter
– Power Cord
– Mounting Kits
– Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
