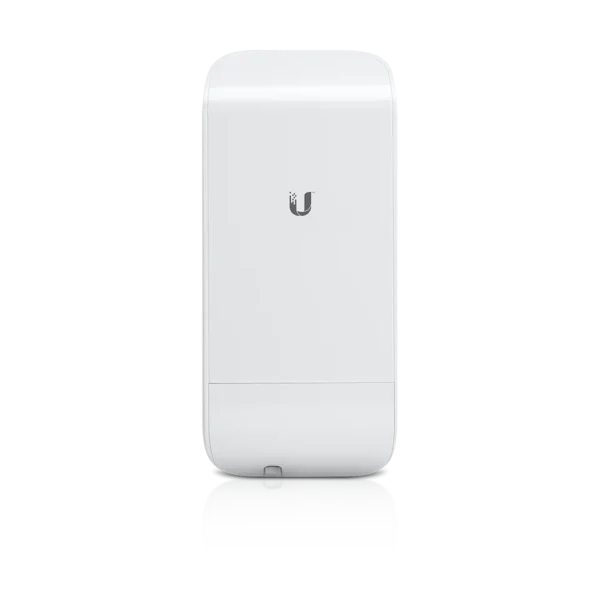

Ubiquiti Networks airMAX NanoStation M5 loco

The Ubiquiti Networks 5 GHz airMAX NanoStation LocoM is a compact, durable radio designed for reliable long-range network connections. Supporting both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, it features a 13 dBi gain, 45° beamwidth, and operates in the 5 GHz band. With easy installation, passive PoE, and weather-resistant design, it’s perfect for outdoor deployments in challenging conditions.

Mechanical

• Dimensions: 161 x 31 x 80 mm (6.3 x 1.2 x 3.2″)
• Weight: 180 g (6.4 oz)
• Enclosure material: Outdoor UV-stabilized plastic
• Mounting: Pole-mount (Kit included)

---

Hardware

• Networking interface: (1) 10/100 MbE RJ45 port
• Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power supply: 24V, 0.5A PoE adapter (Included)
• Supported voltage range: 22–27V DC
• Max. power consumption: 5.5W
• Ambient operating temperature: -30 to 75° C (-22 to 167° F)
• Ambient operating humidity: 5 to 95% noncondensing
• Shock & vibration: ETSI300-019-1.4
• Certifications: FCC, IC, CE, RoHS

---

System

• Frequency: 5 GHz
• Operating frequency:
  • Worldwide: 5170-5875 MHz
  • US: 5725-5850 MHz
  • USA DFS: 5250-5850 MHz
• Gain: 13 dBi
• Cross-pol isolation: 20 dB Min.
• Max. VSWR: 1.4:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Polarization: Dual linear
