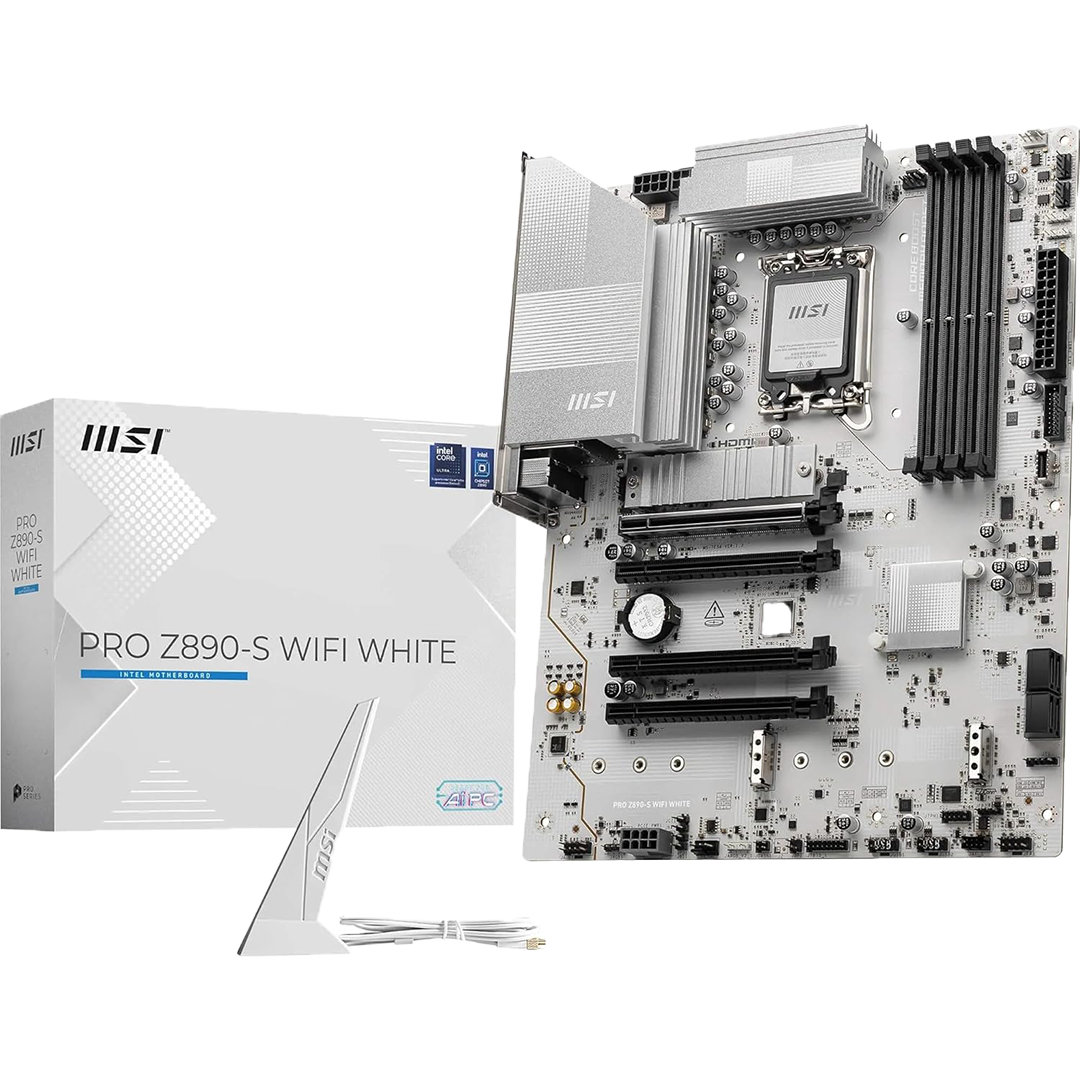

MSI PRO Z890-S Wi-Fi White Motherboard

Power up your workflow by including the MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard in your computer build. Supporting Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, professional content creators can outfit this motherboard to smoothly handle demanding applications and AI workloads.

Specifications:

Chipset: Intel Z890
CPU: Supports Intel Core Ultra Processors (Series 2) LGA 1851
Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support: 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Onboard Graphics:  1x HDMI™ (Support HDMI™ 2.1)
1x DisplayPort (Support DisplayPort 1.4)
1x Type-C DisplayPort (Thunderbolt 4 port, supporting DisplayPort 2.1)

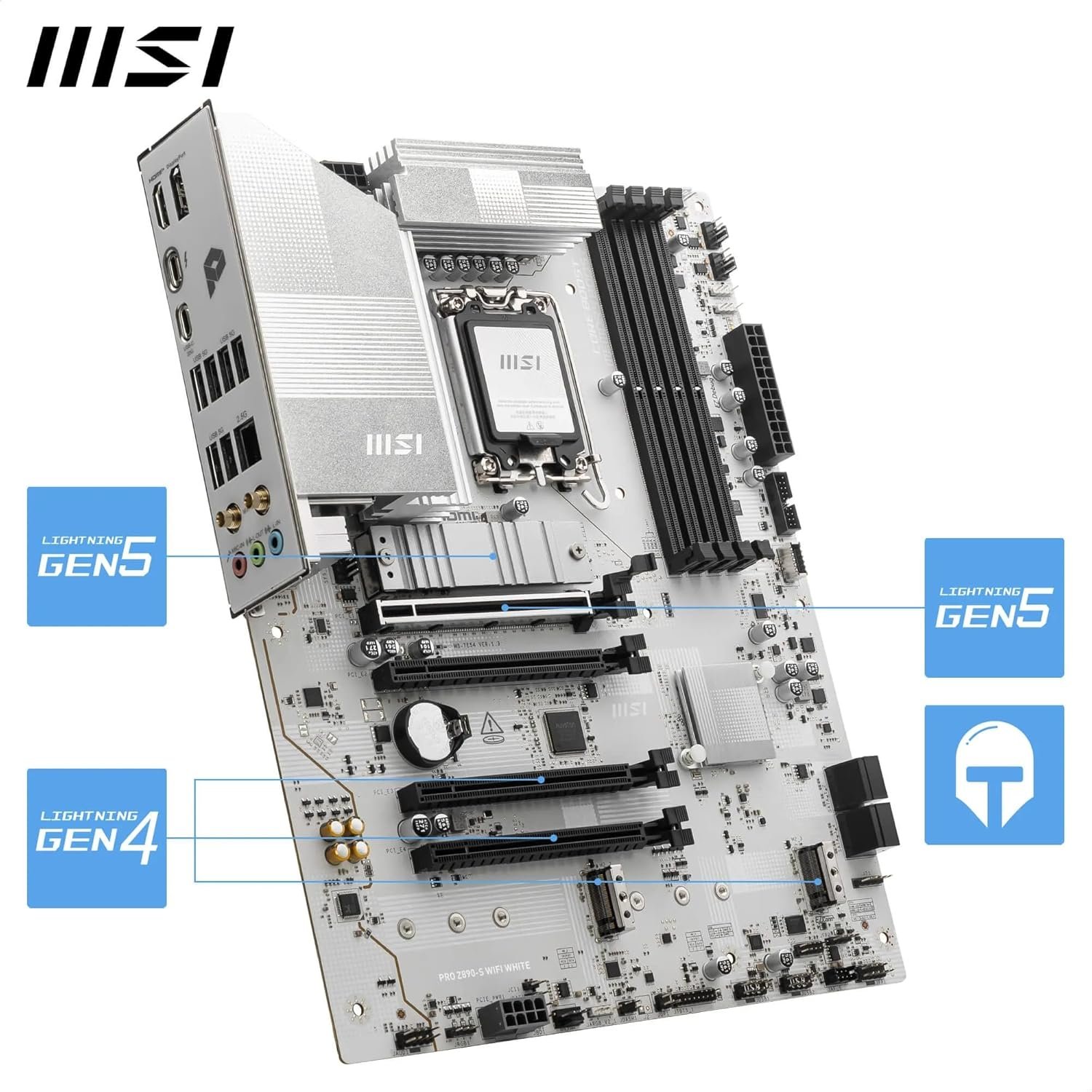

Slot: 4 x PCI-E x16 slot
Storage: 3 x M.2
4 x SATA 6G
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Thunderbolt:  1 x Thunderbolt4 ports (Rear)
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
USB: 4x USB 2.0 (Front)
6x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN: Realtek 8125D 2.5Gbps LAN
Internal IO:  – 1 x Thunderbolt5 card connector(JTBT5, support RTD3)
– 1 x Power Connector(ATX_PWR)
– 2 x Power Connector(CPU_PWR)
– 1 x Power Connector(PCIE_PWR 8pin)
– 1 x CPU Fan
– 1 x Combo Fan (Pump_Sys Fan)
– 4 x System Fan
– 1 x EZ Conn-header (JAF_1)
– 2 x Front Panel (JFP)
– 1 x Chassis Intrusion (JCI)
– 1 x Front Audio (JAUD)
– 1 x Tuning Controller connector(JDASH)
– 3 x Addressable V2 RGB LED connector (JARGB_V2)
– 1 x RGB LED connector(JRGB)
– 1 x TPM pin header(Support TPM 2.0)
– 4 x USB 2.0 ports
– 2 x USB 5Gbps Type A ports
– 1 x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH: Intel® Wi-Fi 7

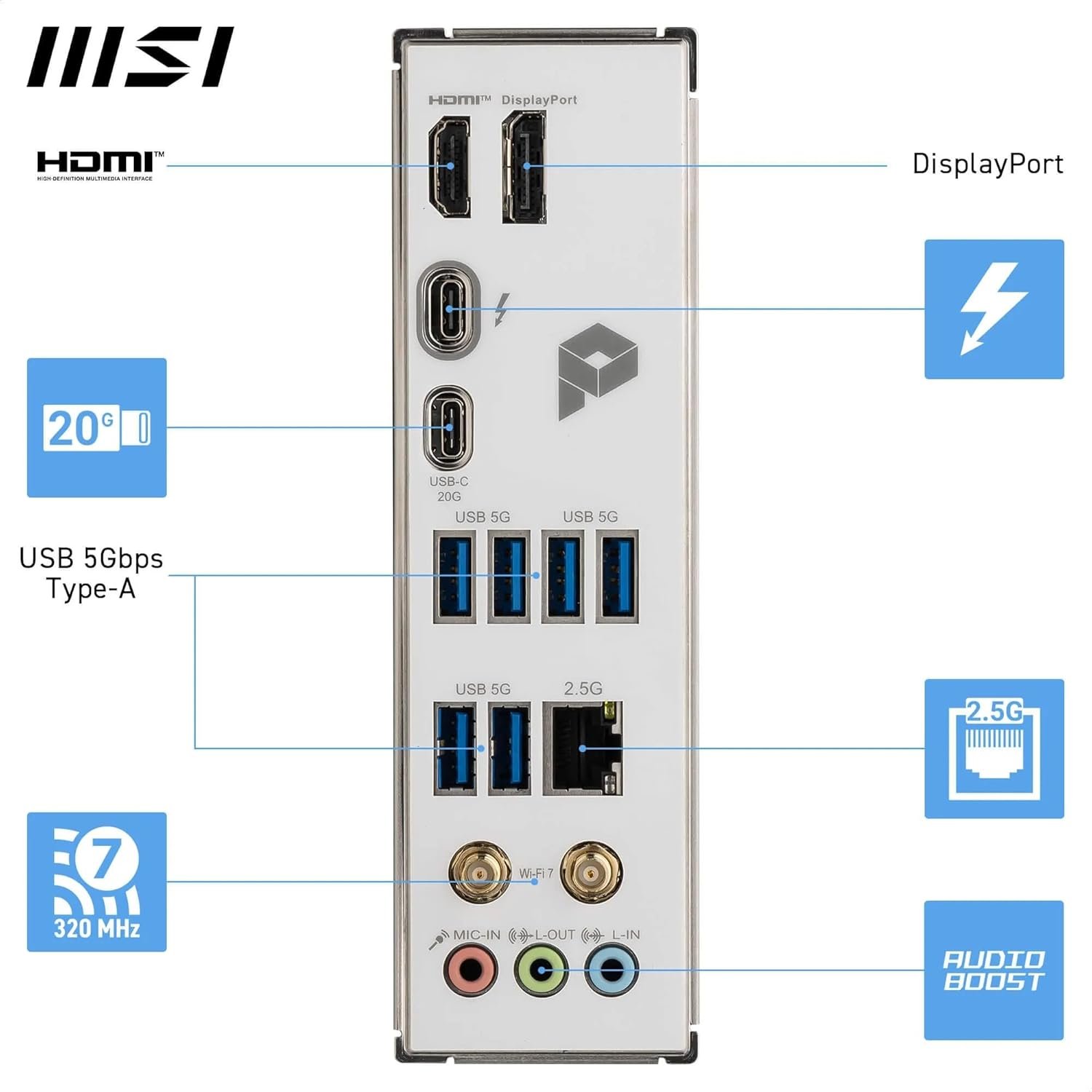

Back Panel Ports: – DisplayPort
– USB 5Gbps Type-A
– 2.5G LAN
– Wi-Fi / Bluetooth
– Audio Connectors
– HDMI
– Thunderbolt 4 40Gbps (Type-C)
– USB 20Gbps Type-C
– USB 5Gbps Type-A

OPERATING SYSTEM: Support for Windows 11 64-bit
PCB INFO: ATX
