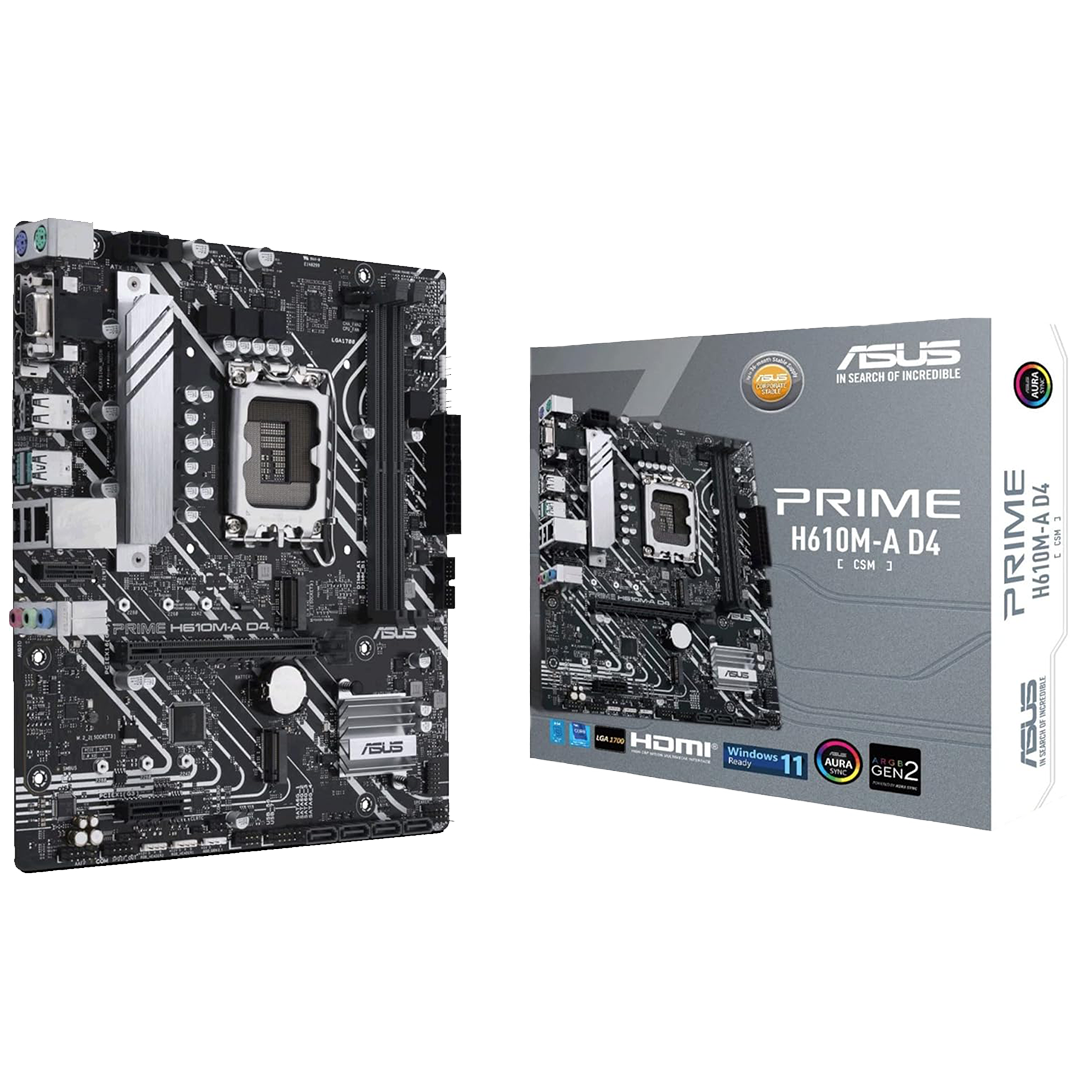

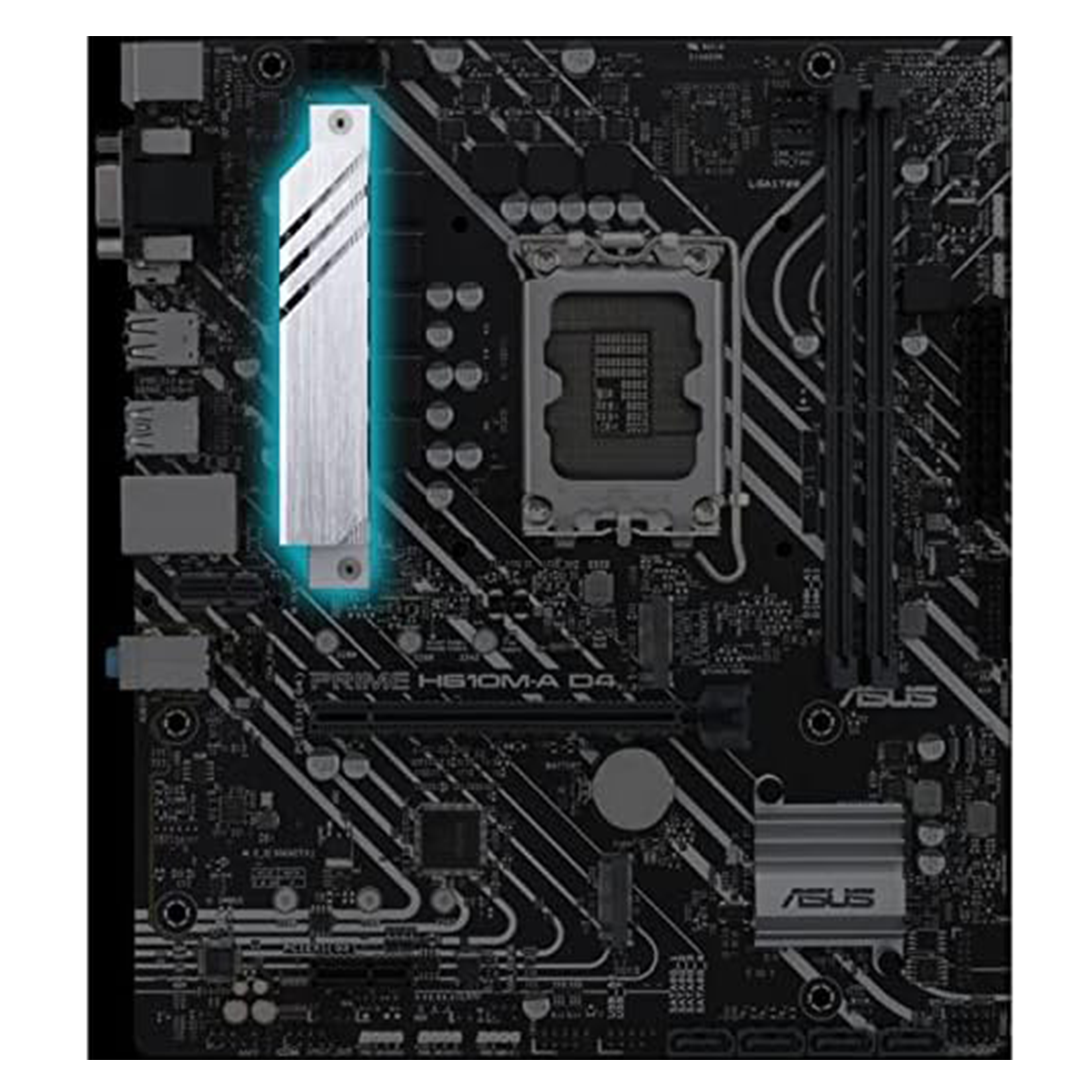

ASUS H610M-A LGA1700 mATX DDR4 Motherboard
$1,398.00
Availability: Only 2 left in stock
ASUS Prime H610M-A D4-CSM | Business Motherboard for Intel
Need a steady board for work PCs? The ASUS Prime H610M-A D4-CSM fits the bill. First, it works with Intel 12th Gen chips. Because of the LGA 1700 socket, setup is easy. Also, it uses affordable DDR4 memory. Moreover, PCIe 4.0 slots add fast storage. So, office systems run smooth and quick. The small Micro-ATX size fits tight cases. Finally, ASUS business tools make IT work simple.
Key Features & Real Benefits
- LGA 1700 Socket – Fits Intel 12th Gen CPUs. As a result, you get modern speed for daily work.
- DDR4 Memory Support – Use low-cost, common RAM sticks. So, building PCs stays budget-friendly.
- PCIe 4.0 + M.2 Slots – Get fast NVMe SSD speeds. Therefore, apps and files load quick.
- Intel 1Gb Ethernet – Enjoy stable wired internet. Plus, fewer drops during video calls.
- USB 3.2 Ports – Move big files fast. Also, front headers support easy USB access.
- ASUS CSM Program – Get up to 36 months of part stability. Because of this, IT orders stay consistent.
- ASUS Control Center Express – Manage devices from one screen. So, remote fixes save time.
- Self-Recovering BIOS – The board fixes BIOS from backup. Therefore, crashes cause less down time.
- Event Logging – Track system info for fast fixes. Moreover, logs help staff solve issues quick.
- Moisture-Resistant Coating – Shields the board from damp air. Consequently, it lasts longer in tough spaces.
- Multiple Display Ports – Hook up monitors via DisplayPort, HDMI, or VGA. So, you can fit any desk setup.
Ideal Use Cases
Office PC Builds – Make reliable systems for staff. Since CSM keeps parts the same, bulk orders match.
IT Managed Sites – Use ACCE for remote control. Because of central tools, updates happen fast.
School or Gov Labs – Deploy tough systems for public use. Moreover, moisture coating handles busy rooms well.
Small Business PCs – Build cost-effective work machines. Therefore, you get business grade without high cost.
Technical Specifications
| Feature | Detail |
|---|---|
| Brand/Model | ASUS Prime H610M-A D4-CSM |
| Socket | Intel LGA 1700 (12th Gen support) |
| Chipset | Intel H610 |
| Form Factor | Micro-ATX (9.6″ x 8.0″) |
| Memory | 2× DDR4 DIMM slots, up to 64GB, 3200MHz |
| Expansion | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| Storage | 2× M.2 slots (PCIe 3.0/4.0), 4× SATA 6Gb/s |
| Network | Intel 1Gb Ethernet |
| Rear USB | 1× USB 3.2 Gen 2 Type-A, 4× USB 2.0 |
| Front USB | 1× USB 3.2 Gen 1 header, 2× USB 2.0 headers |
| Display Outputs | DisplayPort, HDMI 1.4, D-Sub (VGA) |
| Audio | Realtek 7.1-channel HD Audio |
| Special Features | CSM, ACCE, Self-Recovering BIOS, Moisture-Resistant Coating, LPC Header, Debug Card Support |
| BIOS | 256Mb UEFI AMI BIOS with SM BIOS 3.0 |
| Operating System | Windows 10/11 64-bit |
| Warranty | 1-year manufacturer warranty |
Why Pick This Board?
IT teams trust ASUS for solid gear. Indeed, this board blends value and trust. Because of CSM, part sourcing stays steady. Moreover, self-recover BIOS cuts service calls. As a result, staff focus on growth, not fixes. Also, moisture coating extends life in varied rooms. Therefore, total cost stays low. Finally, ACCE tools ease remote work across sites.
Setup & Care Tips
- Check CPU fit with the LGA 1700 socket. Then, install your Intel chip with care.
- Use DDR4 RAM for best value. Because dual-channel boosts speed, use matched pairs.
- Turn on ACCE at setup for remote control. So, IT can manage devices from anywhere.
- Hook monitors to DisplayPort or HDMI first. If needed, use VGA for old screens.
- Keep BIOS fresh via ASUS tools. Therefore, you get the latest security fixes.
FAQs
Q: Does it work with Windows 11?
A: Yes. Since it fits 12th Gen Intel chips, Windows 11 works well. So, deployment is ready for modern OS.
A: Yes. Since it fits 12th Gen Intel chips, Windows 11 works well. So, deployment is ready for modern OS.
Q: Can I use this for gaming?
A: It handles light games with a GPU. However, it is made for business work first.
A: It handles light games with a GPU. However, it is made for business work first.
Q: Is BIOS update safe?
A: Yes. Because of self-recover BIOS, bad updates auto-fix. Therefore, system crash risks drop.
A: Yes. Because of self-recover BIOS, bad updates auto-fix. Therefore, system crash risks drop.
Q: Does it support RAID?
A: Yes. Since it has many storage slots, RAID works via Intel RST.
A: Yes. Since it has many storage slots, RAID works via Intel RST.
Q: Can I manage it remotely?
A: Yes. Because ACCE is built in, staff can monitor devices from afar. So, site visits drop.
A: Yes. Because ACCE is built in, staff can monitor devices from afar. So, site visits drop.
Q: Does it work with older CPUs?
A: No. Since it uses LGA 1700, only 12th Gen (or newer) Intel chips fit. Therefore, check CPU type first.
A: No. Since it uses LGA 1700, only 12th Gen (or newer) Intel chips fit. Therefore, check CPU type first.
Motherboard Driver Support
| Weight | 4 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
