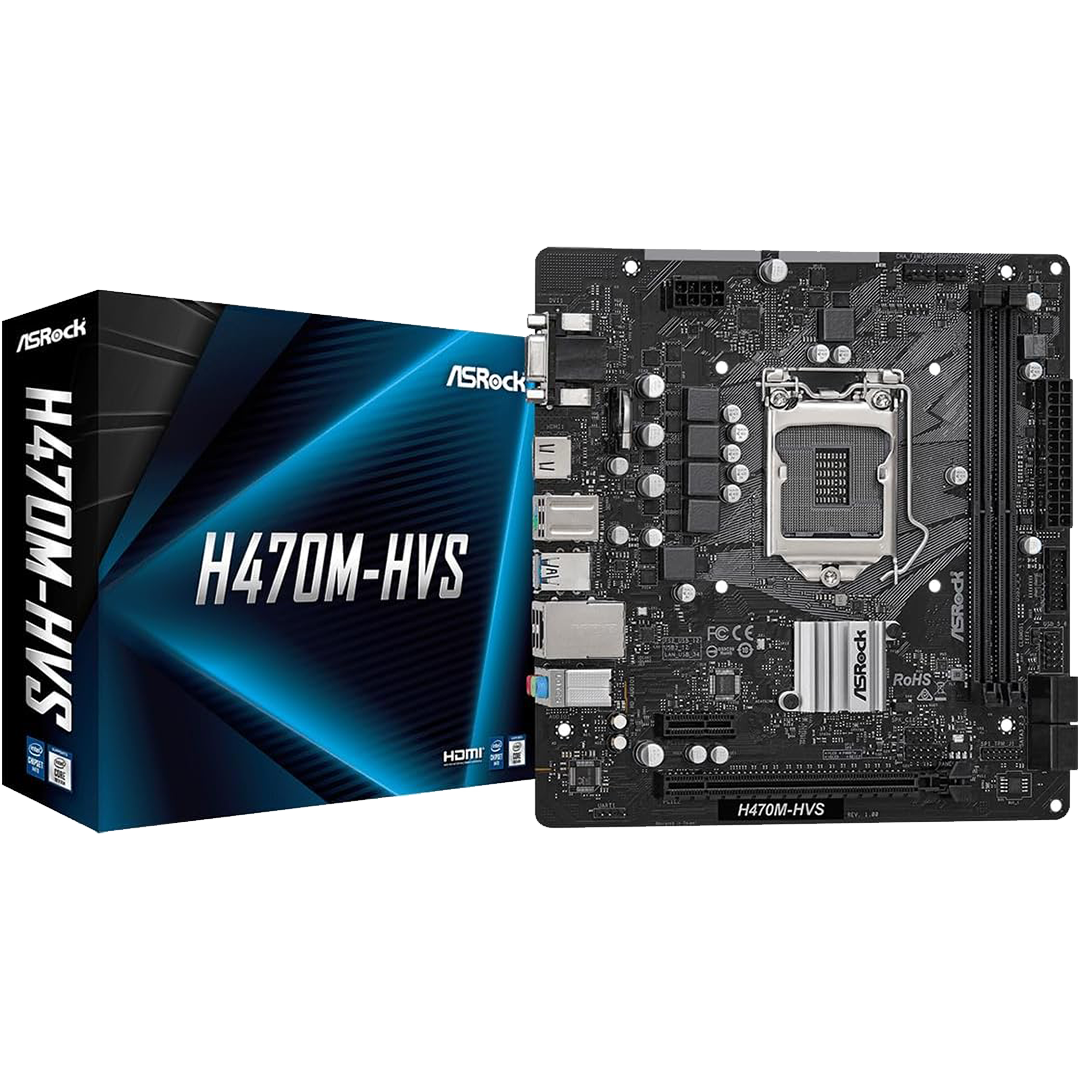

ASRock H470M-HVS Micro-ATX Motherboard LGA1200 Intel 10th Gen DDR4 2933MHz

ASRock H470M-HVS Micro-ATX Motherboard LGA1200 Intel 10th Gen Core DDR4 2933MHz HDMI/D-Sub 4x SATA3 4x USB 3.2 Gen1 Realtek ALC897

Key Features:

• Intel 10th Gen Ready: Supports Intel Core i9/i7/i5/i3, Pentium, and Celeron CPUs (LGA1200)
• Memory Support: 2x DDR4 slots, up to 64GB, 2933MHz max (non-overclockable)
• Storage Options: 4x SATA3 ports for SSDs and HDDs
• Graphics Output: HDMI 1.4 (4K 30Hz) and D-Sub (VGA) for dual-monitor setups
• Audio: Realtek ALC897 7.1 Channel HD Audio with EMI-shielded design
• Expansion Slots: 1x PCIe 3.0 x16 for GPU, 1x PCIe 3.0 x1 for add-on cards
• USB Ports: 4x USB 3.2 Gen1 (2 front, 2 rear) + 6x USB 2.0 (2 front, 4 rear)
• Ethernet: 1x RJ45 LAN port
• Form Factor: Micro-ATX – compact and compatible with most standard cases

Specifications:

• Processor Socket: LGA1200
• Chipset: Intel H470
• Supported Platforms: Windows
• Memory Slots: 2 DIMM
• Maximum RAM: 64GB DDR4
• Storage Interfaces: 4x SATA3 (6Gb/s)
• PCIe Slots: 1x x16, 1x x1
• Video Outputs: HDMI, D-Sub (VGA)
• Audio Codec: Realtek ALC897
• USB Ports: 4x USB 3.2 Gen1, 6x USB 2.0
• Network: 1x Ethernet 10/100/1000 Mbps
• Power Connector: 24-pin ATX main power
• Dimensions: 9.6″ x 7.0″ (24.4 x 17.8 cm)
• Weight: 1.1 lb (approx.)
